Carbon steel elbow
Carbon steel elbow
We supply carbon steel elbows of different standards(ANSI;JIS;DIN).
eg. ASTM A234 WPB & ANSI B16.9
1) Items: elbows
2) Standards: SGP, STD, SCH40, SCH80, SCH160. and so on.
3) Size: 1/2"---72"
Related Keywords:elbow tee reducer cap bend

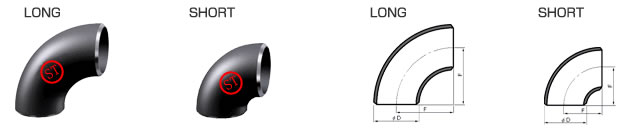

NAME：90 DEGREE BUTT-WELDED ELBOW
MATERIAL：A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.
PRESSURE：Sch5-Sch160、XXS、XS、STD
STANDARDS： ISO. ANSI. JIS. DIN GB/T12459、GB/T13401、ASME B16.91
USE： Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.
USE： Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.

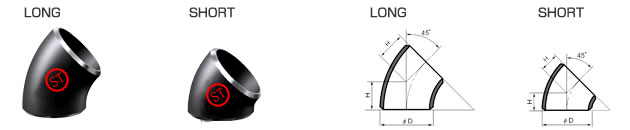

NAME：45 DEGREE BUTT-WELDED ELBOW
MATERIAL：A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.
PRESSURE：Sch5-Sch160、XXS、XS、STD
STANDARDS： ISO. ANSI. JIS. DIN GB/T12459、GB/T13401、ASME B16.91
USE： Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.

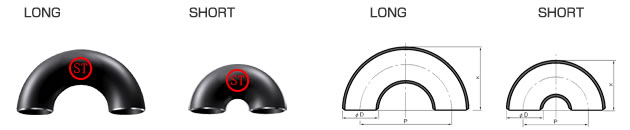

NAME：180 DEGREE BUTT-WELDED ELBOW
MATERIL：A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5L.
SIZE：1/2"-48"、DN15-DN1200
PRESSURE：Sch5-Sch160、XXS、XS、STD
STANDARDS： ISO. ANSI. JIS. DIN. GB/T12459、GB/T13401、ASME B16.9
USE： Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.
|
Nominal pipe size |
Outside Diameter
at Bevel
|
Center to End
|
Center to Center
|
Back to Faces
|
|
|
|
180°Return
|
|
H
|
F
|
P
|
K
|
|
DN
|
INCH
|
Series A
|
Series B
|
LR
|
LR
|
SR
|
LR
|
SR
|
LR
|
SR
|
|
15
|
1/2 |
21.3
|
18
|
16
|
38
|
-
|
76
|
-
|
48
|
-
|
|
20
|
3/4 |
26.9
|
25
|
16
|
38
|
-
|
76
|
-
|
51
|
-
|
|
25
|
1 |
33.7
|
32
|
16
|
38
|
25
|
76
|
51
|
56
|
41
|
|
32
|
11/4 |
42.4
|
38
|
20
|
48
|
32
|
95
|
64
|
70
|
52
|
|
40
|
11/2 |
48.3
|
45
|
24
|
57
|
38
|
114
|
76
|
83
|
62
|
|
50
|
2 |
60.3
|
57
|
32
|
76
|
51
|
152
|
102
|
106
|
81
|
|
65
|
21/2 |
76.1(73)
|
76
|
40
|
95
|
64
|
191
|
127
|
132
|
100
|
|
80
|
3 |
88.9
|
89
|
47
|
114
|
76
|
229
|
152
|
159
|
121
|
|
90
|
31/2 |
101.6
|
-
|
55
|
133
|
89
|
267
|
178
|
184
|
140
|
|
100
|
4 |
114.3
|
108
|
63
|
152
|
102
|
305
|
203
|
210
|
159
|
|
125
|
5 |
139.7
|
133
|
79
|
190
|
127
|
381
|
254
|
262
|
197
|
|
150
|
6 |
168.3
|
159
|
95
|
229
|
152
|
457
|
305
|
313
|
237
|
|
200
|
8 |
219.1
|
219
|
126
|
305
|
203
|
610
|
406
|
414
|
313
|
|
250
|
10 |
273.0
|
273
|
158
|
381
|
254
|
762
|
508
|
518
|
391
|
|
300
|
12 |
323.9
|
325
|
189
|
457
|
305
|
914
|
610
|
619
|
467
|
|
350
|
14 |
355.6
|
377
|
221
|
533
|
356
|
1067
|
711
|
711
|
533
|
|
400
|
16 |
406.4
|
426
|
253
|
610
|
406
|
1219
|
813
|
813
|
610
|
|
450
|
18 |
457.2
|
478
|
284
|
686
|
457
|
1372
|
914
|
914
|
686
|
|
500
|
20 |
508.0
|
529
|
316
|
762
|
508
|
1524
|
1016
|
1016
|
762
|
|
550
|
22 |
559
|
-
|
347
|
838
|
559
|
NOTE： 1)、Do not use the figures
in the parenthesis as far as possible。
2)、please first select A series 。
|
|
600
|
24 |
610
|
630
|
379
|
914
|
610
|
|
650
|
26 |
660
|
-
|
410
|
991
|
660
|
|
700
|
28 |
711
|
720
|
442
|
1067
|
711
|
|
750
|
30 |
762
|
-
|
473
|
1143
|
762
|
|
800
|
32 |
813
|
820
|
505
|
1219
|
813
|
|
850
|
34 |
864
|
-
|
537
|
1295
|
864
|
|
900
|
36 |
914
|
920
|
568
|
1372
|
914
|
|
950
|
38 |
965
|
-
|
600
|
1448
|
965
|
|
1000
|
40 |
1016
|
1020
|
631
|
1524
|
1016
|
|
1050
|
42 |
1067
|
-
|
663
|
1600
|
1067
|
|
1100
|
44 |
1118
|
1120
|
694
|
1676
|
1118
|
|
1150
|
46 |
1168
|
-
|
726
|
1753
|
1168
|
|
1200
|
48 |
1220
|
1220
|
758
|
1829
|
1219
|
|
