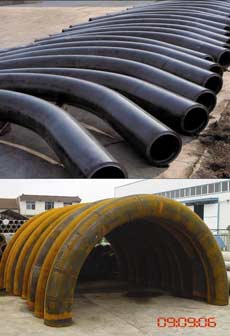

    Pipe Bend.

    Our X70, X80 pipe bends are widely used in large engineering projects. For example, our X80 ¢1219.2×22, X70 ¢1219.2×22 hot-bending bends for West-to-East Gas Transmission Project and Sichuan-to-East Gas Transmission Project have earned trust and praise from our customers.
    Our commonly used raw materials are X70 and X80. But our pipe bends can also be made from API 5L GRADE B, X42, X46, X52, X56, X60, and X65.



    Size
    Seamless bend: 1/2"~24" DN15~DN600
    Welding bend: 6"~60" DN150~DN1500

    Wall Thickness
    sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
    sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
    Max. wall thickness: 200mm

    Materials
    Carbon steel Pipe Bend: ASTM/ASME A234 WPB-WPC
    Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
    Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
    ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
    ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
    Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
    High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

    Standards
    SY/T5257-2004
    DL/T515-2004 GD2000 GD87-1101
    ASME B16.49-2007 ASME B16.25-2007

    Industrial Processes
    Bending, squeezing, pressing, forging, machining and more

    Industries Served
    Our pipe bends are widely used in many industries, such as power generation, petroleum, natural gas, chemicals, shipbuilding, construction, papermaking, metallurgy and so on.

    Specifications for Pipe Bend


    Pipe Bendd  Production range
    Seamless bends Welding bends
    Outside diameter 1/2"~24" 6"~60"
    Wall thickness 4mm200mm
    Bending radius R=3D~10D
    Product angle 0°~180°

    Pipe BendPIPE BEND

    Pipe BendSTAINLESS STEEL BEND

    Pipe Bend CARBON STEEL PIPE BEND
