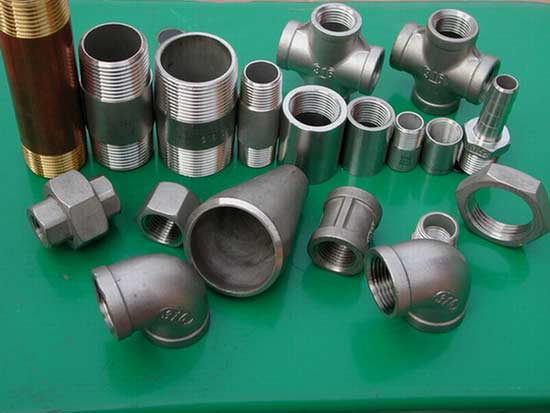

threaded pipe fittings

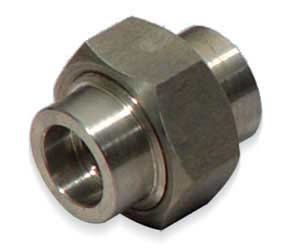

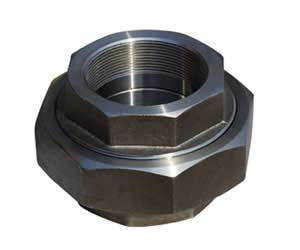

Union Joint

Our union joint is designed and manufactured for the joining of ends of lengths of installed pipes where rotation of neither length is possible. It is composed of a union head having a male screw thread, a union tail piece and a union nut.
Size
1/8"~4"
DN6~DN80br>
Pressure
CCLASS 3000

Materials
Carbon steel: A105
Alloy steel: A182 F 1-F 2-F 5-F 9-F 10-F 91-F 92-F 122-F 911-F 11-F 12-F 21-F 22
Stainless steel: A182 304-304H-304L-304N-304LN 316-316H-316L-316N-316LN 321-321H 347-347H
Low temperature steel: A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8
High performance steel: A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70

Standards
MSS SP 83-2006
BS3799-1974

Industrial Processes
Die forging, Machining

Industries Served
Electrical power, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy
