DIN 2567 FLANGE


10 BAR FLANGES

DIN 2567 SLIP-ON FLANGES

DIN 2527 BLIND FLANGES

DIN 2632 WELDING NECK FLANGES

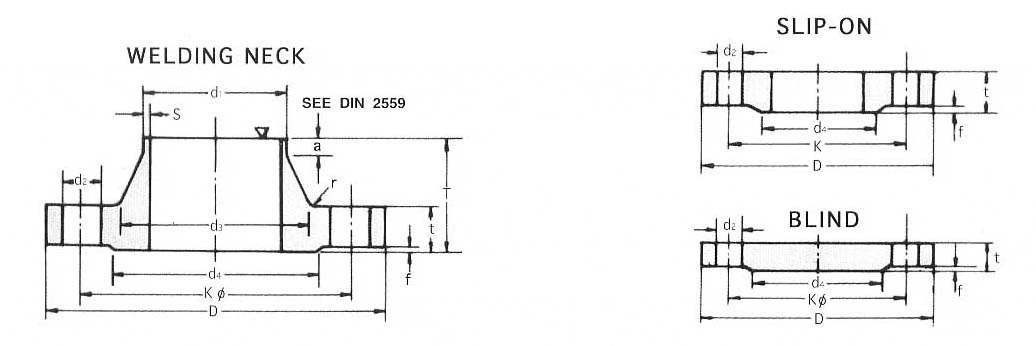

DIN2533 2567 2633 2635 Flange

Unit: mm

Bore Common Dimension Hub Raised Face Drilling Approx. Weight(kg)
Nominal Bore d1 D t K T d3 s r a d4 f Number of Bolts Diam. of Bolt d2 DIN 2567 DIN 2632
Welding Neck Slip on Blind
10

15

20

14   17.2*) 20   21.3*) 25   26.9*)

90

95

105

14

14

16

14

14

16

14

14

16

60

65

75

35

35

38

25 28 30 32 38 40 1.8

2.0

2.3

4

4

4

6

6

6

40

45

58

2

2

2

4

4

4

M12

M12

M12

(1/2")

(1/2")

(1/2")

14

14

14

0.613

0.675

0.947

0.580

0.648

0.952

25

32

40

30   33.7*) 38   42.4*) 44.5 48.3*)

115

140

150

16

16

16

16

16

16

16

16

16

85

100

110

38

40

42

42 45 52 56 60 64 2.6

2.6

2.6

4

6

6

6

6

7

68

78

88

2

2

3

4

4

4

M12

M16

M16

(1/2")

(5/8")

(5/8")

14

18

18

1.14

1.66

1.89

1.14

1.69

1.86

50

65

80

57   60.3*)76.1*)88.9*)

165

185

200

18

18

20

18

18

20

18

18

20

125

145

160

45

45

50

72 75 90 105 2.9

2.9

3.2

6

6

8

8

10

10

102

122

138

3

3

3

4

4

4

M16

M16

M16

(5/8")

(5/8")

(5/8")

18

18

18

2.51

3.00

3.79

2.53

3.06

3.70

100

125

150

108 114.3*) 133 139.7*) 159 168.3

220

250

285

20

22

22

20

22

22

20

22

22

180

210

240

52

55

55

125 131 150 156 175 184 3.6

4.0

4.5

8

8

10

12

12

12

158

188

212

3

3

3

8

8

8

M16

M16

M20

(5/8")

(5/8")

(3/4")

18

18

23

4.20

5.71

6.72

4.62

6.30

7.75

200

250

300

216 219.1*) 267   273*) 318 323.9*)

340

395

445

24

26

26

24

26

26

24

26

28

295

350

400

62

68

68

232 235 285 292 335 344 5.9

6.3

7.1

10

12

12

16

16

16

268

320

370

3

3

4

8

12

12

M20

M20

M20

(3/4")

(3/4")

(3/4")

23

23

23

9.50

12.5

14.4

11.3

14.7

17.6

350

400

500

355.6*) 368 406.4*) 419   508*) 521

505

565

670

26

26

28

28

32

38

30

32

34

460

515

620

68

72

75

385

440

542

7.1

7.1

7.1

12

12

12

16

16

16

430

482

585

4

4

4

16

16

20

M20

M24

M24

(3/4")

(7/8")

(7/8")

23

27

27

20.6

27.9

41.1

23.6

28.6

38.1

600

700

800

609.6*) 622    711.2*)720    812.8*)820

780

895

1015

28

30

32

    725

840

950

80

80

90

642

745

850

7.1

8.0

8.0

12

12

12

18

18

18

685

800

905

5

5

5

20

24

24

M27

M27

M30

(1")

(1")

(1-1/8")

30

30

33


900

1000

914.4*)920    1016*) 1020

1115

1230

34

34

    1050

1160

95

95

950

1052

10.0

10.0

12

16

20

20

1005

1110

5

5

28

28

M30

M33

(1-1/8")

(1-1/4")

33

36
