ansi cap,ansi pipe cap


Standard: ASTM A 16.5, ASTM A16.47,ISO,DIN,GB,BS

NAME:CAP ,ansi cap,ansi pipe cap

 MATERIAL:carbon steel ,alloy steel ,stainless steel

 SIZE:1/2"-48",DN15-DN1200
 PRESSURE:Sch5-Sch160,XXS
 STANDARDS:SNSI, JIS, DIN, GB/T12459,GB/T13401,ASME B16.9

 USE:Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.

Others:

1Special design available according to requirement

2.All the production process are made under the ISO9001:2000 strictly.

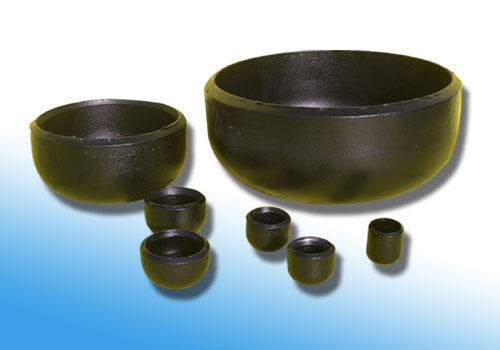

 butt-welding ANSI cap Pipe Cap cap fitting

name

butt-welding ANSI cap

Size

Seamless 1/2" - 48"

Wall thickness

Sch5-Sch160 XXS

Standard

ANSI, ASME, API5L, OCT, DIN and JIS, etc.

we can also produce according to drawing and standards provided by customers.

Material

Carbon steel, alloy steel and stainless steel.

 We can produce according to materials appointed by consumers.

Connection

Butt Welding

shape

Equal

Packaging

Wooden Cases, wooden pallet plastic bag or as customers requirement

Surface Treatment

Shot blasted, rust-proof black oil
