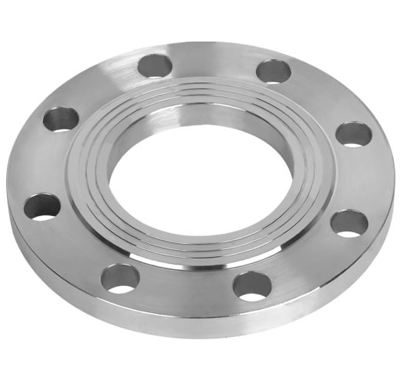

B16.48 flange


 ANSI B16.48 Flange

1.Size : 3/8"~40"
2.DN: 10~1000
3.Inspection: in-house and the third party
4.Moq:50pcs

ANSI B16.48 Flange

Size: 3/8"~40"
DN: 10~1000
PN: 1.0--------58.0
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500 and CLASS 6000.
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400
Flange Facing Types: Flat Face (FF), Groove (G), Ring Joints Face(R)
Standard: HG20592, ASME16.5-2009, DIN2633, ANSI, JIS.
Material: 195,Q235,20II,16Mn,20Mn,304,304L,316,316L,321 or as required.
Surface treatment: Transparent oil, rust-proof black oil or hot galvanized.
Special equipment manufacture license: manufacture license of special equipment of P.R.C

ANSI ASME B16.48 flange
Marking: according to client’s requirement.
QC staff: 10-15.
Inspection: in-house and the third party.
Used for: petroleum, chemical, power, gas, water, line pipe, heat exchanger, shipbuilding, construction, etc.
Tolerance: not less than +_8% of normal wall thickness.
Our objective: Survival by quality and development by credibility.
Special design available to all the production process is made according to clients’ requirements strictly.

ANSI:    ANSI B16.5/ASME  B 16.47 STANDARD  150LBS 300LBS 600LBS  900LBS 1500LBS Welding neck flange  , slip-on flange , blind flange
EN1092-1   flange : EN1092-1

DIN FLANGE : DIN2527/2573/2576/   DIN2633 DIN2543  DIN2573 DIN2544 DIN 2535  DIN2632/2633/2634/2635-----PN6, PN10, PN16, PN25, PN40  CARBON STEEL FLANGE

UNI: UNI2253/2254/2270/2276/2278/2281/2280/2284/6083/6092/6093.    PLATE SLIP ON, WELDING NECK , BLIND FLANGE
GOST 12820-80   GOST12821-80
JIS B2220 & KS:  5K 10K 16K 20K   SOP  SOH BL



ANSI/ASME Forged Flanges

* ASME/ANSI B16.5 : WELDING NECK FLANGE, SLIP-ON FLANGE, BLIND FLANGE,HIGH HUB BLIND FLANGE, SOCKET WELD FLANGE.LAPJOINT FLANGE, THREADED FLANGE. RING TYPE JOINT FLANGE.
Pressure Class : 150, 300, 400 , 600 , 900, 1500 , 2500
* ASME/ANSI B16.47(SERIES A & B) : WELDING NECK FLANGE, BLIND FLANGE.
Pressure Class :75, 150, 300, 400 , 600 , 900
* ASME/ANSI B16.36 : (ORIFICE FLANGES) WELDING NECK FLANGE, SLIPON FLANGE, THREADED FLANGE.
Pressure Class :300, 400 , 600 , 900, 1500 , 2500
* ASTM/ANSI B16.48:( Figure-8 blanks) Paddle Blank  Paddle Spacer
Pressure Class :150, 300, 400 , 600 , 900,1500, 2500
* MSS SP44 :WELDING NECK FLANGE, BLIND FLANGE.
Pressure Class :300, 400 , 600 , 900
* API 6A :WELDING NECK FLANGE, THREAD FLANGE,BLIND FLANGE.
Pressure :2000Psi, 3000Psi, 5000Psi, 10000Psi, 15000Psi, 20000Psi, 25000Psi

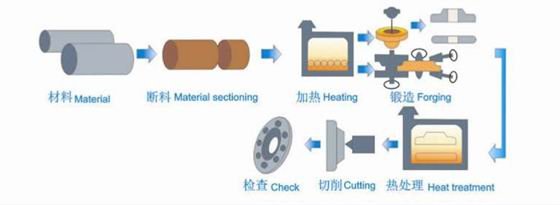

Process :
