Method of measuring thickness of punching pipe elbow


Punching elbow is used in many industries, which is a more important device in industry. Our company as a punching elbow manufacturing company, the study of it has never been relaxed, as early as the last century in the 90 's, our company will be self-developed production to wear-resistant elbow, and has been to the present, have not loosened its improvement. And to obtain the broad masses of customers and praise. So far, our production of stamping elbow is also in the world advanced level, so many provinces and cities, hundreds of customers, dozens of industries, have purchased our company's products.
From this we can see that our company's products do have a high reputation guarantee. Stamping elbow processing is the use of conventional or special stamping equipment power, make the sheet in the mold directly under the deformation force and deformation, so as to obtain a certain shape, size and performance of the product parts of the production technology. Sheet, mold and equipment are the three elements of stamping processing. Stamping process is a kind of metal cold deformation processing method. So, Called cold stamping or sheet stamping, for short stamping. It is one of the main methods of metal plastic processing (or pressure processing), and also belongs to material forming engineering technology. The die used for stamping is called stamping die, stamping die is a special tool for the bulk processing of materials (metal or non-metallic) into the required punching parts. Stamping die is very important, there is no stamping die, batch stamping production is difficult; no advanced stamping die, advanced punching technology can not be achieved. Stamping Process and die , stamping equipment and stamping materials constitute the three elements of stamping processing, only they can be combined to obtain stamping parts. With the development of the world economy. Target-oriented international advanced construction and shipbuilding industry and other related industries.

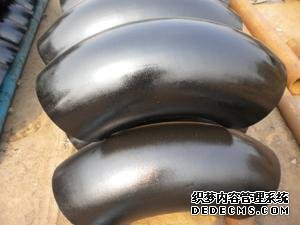

carbon steel pipe elbow
Stainless steel punching elbow to connect the main parts, the development of this product can take the responsibility of the international first-class technology and set sail. Punching elbow lofting Skills first to know the pipe diameter or outside diameter size, naoto wall thickness, is a few elbow, bending radius.
None of these conditions is enough.
Expand the Long =524π
The shape of the unfolded arc is a sine wave curve,
The wavelength is 524π=1646mm,
Wave height is 524xtan (90÷6÷2) °=524xtan7,5°=524x0,131653=68,9859≈69mm
Each of the two sections of a single arc, the middle five are two symmetrical graphics, You have not told the bending radius, still cannot determine the middle five-section expansion ends straight segment size.
You decide, Fixed-length point is a large bending radius, whereas the bending radius is small.
