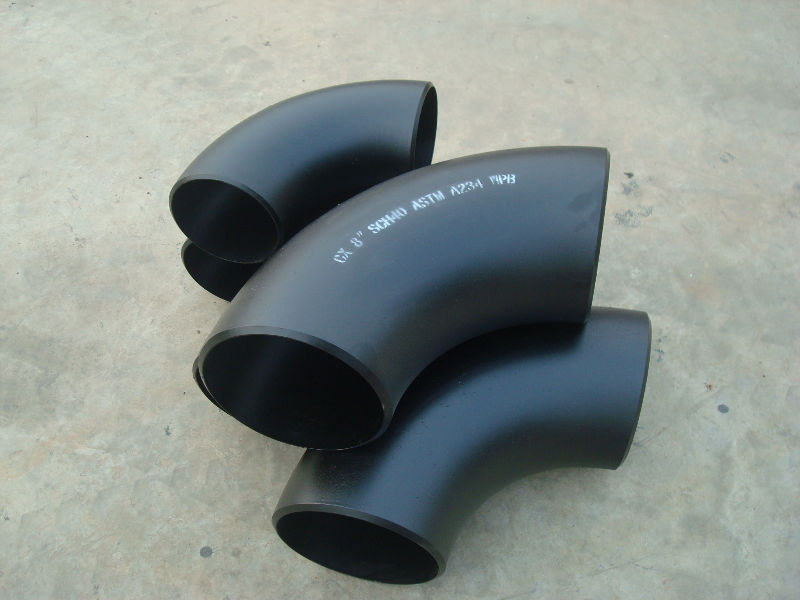

ASME B16.28 Elbow Fitting


1)ANSI B16.9/B16.11/B16.28, DIN2605-2642, JIS, etc. 2)SCH10/SCH20/SCH30/STD/SCH40/SCH80,etc.3)1/2''---48''

For the Butt-Welding Pipe Fittings

1)standard: ANSI B16.9/B16.11/B16.28, DIN2605-2642, JIS, ISO etc.

2) Items including: the long and short Elbows, straight and reducing Tees, Concentric and eccentric Reducers, Bends, Caps and Crossover(four channel).

3)materials: carbon steel and stainless steel

4)Wall thickness: SCH10/SCH20/SCH30/STD/SCH40/SCH80 etc

5)specifications : 1/2''-48'' .

6)Brand:HE,HB,HF,GF,etc.

7)They are widely used in the fields of Electric power, Petrochemical, Chemical, Medicine, Boiler and Ship-building industries.

ASME ASTM ANSI B16.9 B16.28 90 DEG Carbon Steel pipe fitting

 ASME B16.28 Elbow Fitting

Material carbon steel, alloy steel, stainless steel
Standard ASME B16.9 B16.28, ASTM A234 A420 MSS-75 MSS-79 ,DIN 2605 2609 2616
Size 1/2inch - 48inch
Thickness sch5s,sch10s,sch20s,sch30,sch40.sch60,sch80,sch100,sch120,sch140,sch160
Certification ISO 9001 certified. API. RAW material, Mill cert.
Degree 45D. 90D. 180D
Packing Wooden cases, wooden pallet or neutral boxes.
Package size:1100×7000mm ,1200×1000mm or other suitable size for containers
