Product Name: Equal tee Place of Origin: Mengcun,China Standard: ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M---1996, DIN2605 / 2615 / 2616, JIS P2311/2312 Thickness: SGP, STD, SCH40, SCH80, SCH160. XS,XXS and so on. Size: 1/2"--60" Material: Carbon steel , alloy steel, stainless steel Surface treatment: Transparent oil, rust-proof black oil or hot galvanized. Payment:T/T OR L/C. Major Products: Seamless pipes,Elbow, Reducer, Tee, Pipe Cap, Flange and etc... Special design available All the production process are made according to ISO9001:2000 strictly. keyword:reducer,Seamless equal tee,Steel tee,Carbon Steel Seamless tee,equal tee |
|

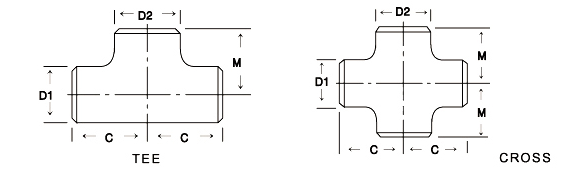

TEE SIZE
JIS
|
Nominal Pipe Size (NPS)
|
Outside Diameter
|
Center-to-End
|
|||
|
A
|
B
|
D1
|
D2
|
C
|
M
|
|
15×15×15
20×20×20 20×20×15 |
½×½×½
¾×¾×¾ ¾×¾×½ |
21.7
27.2 27.2 |
21.7
27.2 21.7 |
25.4
28.6 28.6 |
25.4
28.6 28.6 |
|
25×25×25
25×25×20 5×25×15 |
1×1×1
1×1×¾ 1×1×½ |
34.0
34.0 34.0 |
34.0
27.2 21.7 |
38.1
38.1 38.1 |
38.1
38.1 38.1 |
|
32×32×32
32×32×25 32×32×20 32×32×15 |
1¼×1¼×1¼
1¼×1¼×1 1¼×1¼×¾ 1¼×1¼×½ |
42.7 |
42.7
34.0 27.2 21.7 |
47.6 |
47.6
47.6 47.6 47.6 |
|
40×40×40
40×40×32 40×40×25 40×40×20 40×40×15 |
1½×1½×1½
1½×1½×1¼ 1½×1½×1 1½×1½×¾ 1½×1½×½ |
48.6
48.6 48.6 48.6 48.6 |
48.6
42.7 34.0 27.2 21.7 |
57.2
57.2 57.2 57.2 57.2 |
57.2
57.2 57.2 57.2 57.2 |
|
50×50×50
50×50×40 50×50×32 50×50×25 50×50×20 |
2×2×2
2×2×1½ 2×2×1¼ 2×2×1 2×2×¾ |
60.5
60.5 60.5 60.5 60.5 |
60.5
48.6 42.7 34.0 27.2 |
63.5 |
63.5
60.3 57.2 50.8 44.5 |
|
65×65×65
65×65×50 65×65×40 65×65×32 65×65×25 |
2½×2½×2½
2½×2½×2 2½×2½×1½ 2½×2½×1¼ 2½×2½×1 |
76.3
76.3 76.3 76.3 76.3 |
76.3
60.5 48.6 42.7 34.0 |
76.2
76.2 76.2 76.2 76.2 |
76.2
69.9 66.7 63.5 57.2 |
|
80×80×80
80×80×65 80×80×50 80×80×40 80×80×32 |
3×3×3
3×3×2½ 3×3×2 3×3×1½ 3×3×1¼ |
89.1
89.1 89.1 89.1 89.1 |
89.1
76.3 60.5 48.6 42.7 |
85.7
85.7 85.7 85.7 85.7 |
85.7
82.6 76.2 73.0 69.9 |
|
90×90×90
90×90×80 90×90×65 90×90×50 90×90×40 |
3½×3½×3½
3½×3½×3 3½×3½×2½ 3½×3½×2 3½×3½×1½ |
101.6
101.6 101.6 101.6 101.6 |
101.6
89.1 76.3 60.5 48.6 |
95.3
95.3 95.3 95.3 95.3 |
95.3
92.1 88.9 82.9 79.4 |
|
100×100×100
100×100×90 100×100×80 100×100×65 100×100×50 100×100×40 |
4×4×4
4×4×3½ 4×4×3 4×4×2½ 4×4×2 4×4×1½ |
114.3
114.3 114.3 114.3 114.3 114.3 |
114.3
101.6 89.1 76.3 60.3 48.6 |
104.8
104.8 104.8 104.8 104.8 104.8 |
104.8
101.6 98.4 95.3 88.9 85.7 |
|
125×125×125
125×125×100 125×125×90 125×125×80 125×125×65 125×125×50 |
5×5×5
5×5×4 5×5×3½ 5×5×3 5×5×2½ 5×5×2 |
139.8
139.8 139.8 139.8 139.8 139.8 |
139.8
114.3 101.6 89.1 76.3 60.5 |
123.8
123.8 123.8 123.8 123.8 123.8 |
123.8
117.5 114.3 111.1 108.0 104.8 |
|
150×150×150
150×150×125 150×150×100 150×150×90 150×150×80 |
6×6×6
6×6×5 6×6×4 6×6×3½ 6×6×3 |
165.2
165.2 165.2 165.2 165.2 |
165.2
139.8 114.3 101.6 89.1 |
142.9
142.9 142.9 142.9 142.9 |
142.9
136.5 130.2 127.0 123.8 |
|
200×200×200
200×200×150 200×200×125 200×200×100 200×200×100 |
8×8×8
8×8×6 8×8×5 8×8×4 8×8×3½ |
216.3
216.3 216.3 216.3 216.3 |
216.3
165.2 139.8 114.3 101.6 |
177.8
177.8 177.8 177.8 177.8 |
177.8
168.3 161.9 155.6 152.4 |
|
250×250×250
250×250×200 250×250×150 250×250×125 250×250×100 |
10×10×10
10×10×8 10×10×6 10×10×5 10×10×4 |
267.4
267.4 267.4 267.4 267.4 |
267.4
216.3 165.2 139.8 114.3 |
215.9
215.9 215.9 215.9 215.9 |
215.9
203.2 193.7 190.5 184.2 |
