Socket Weld Elbows ASME B16.11

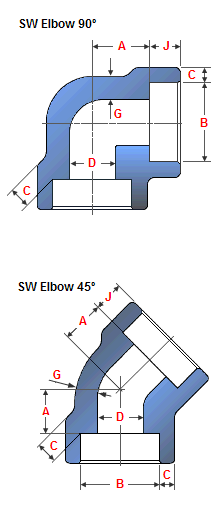

Dimensions Socket Weld Elbows - NPS 1/2 to 4 - 90°/45° - 3000 LBS - ASME B16.11
General notes:
- Dimensions are in millimeters unless otherwise indicated.
- Socket Bore (B) - Maximum and minimum dimensions.
- Bore Diameter (D) - Maximum and minimum dimensions.
- Socket wall thickness - (C) - Average of Socket wall thickness.
- Dimensional tolerances center to bottom of socket - (A)
NPS 1/2 and NPS 3/4 = +/- 1.5 mm
NPS 1 to NPS 2 = +/- 2 mm
NPS 2½ to NPS 4 = +/- 2.5 mm
NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Body wall thickness |
Center to bottom of socket A |
|
B | J | D | C | G | 90° | 45° | |
1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
3.75 | 15.5 | 11.5 |
3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
3.90 | 19.5 | 12.5 |
1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
4.55 | 22 | 14 |
1 ¼ | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
4.85 | 27 | 17 |
1 ½ | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
5.10 | 32 | 21 |
2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
5.55 | 38 | 25 |
2 ½ | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
7.00 | 41.5 | 29 |
3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
7.60 | 57.5 | 31.5 |
4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
8.55 | 66.5 | 41.5 |
Dimensions Socket Weld Elbows - NPS 1/2 to 2 - 90°/45° - 6000 LBS - ASME B16.11
NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Body wall thickness |
Center to bottom of socket A |
|
B | J | D | C | G | 90° | 45° | |
1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
4.80 | 19.5 | 12.5 |
3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
5.55 | 22.5 | 14.5 |
1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
6.35 | 27 | 17 |
1 ¼ | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
6.35 | 32 | 21 |
1 ½ | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
7.15 | 38 | 25 |
2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
8.75 | 41 | 29 |
