a105 wn rf flange,ms flanges


Our products :carbon steel ,alloy steel ,stainless steel pipes and pipe fittings,a105 wn rf flange,ms flanges

Elbow

DN15~DN3600

Flange

DN15~DN3600

Tee

DN15~DN3600

Reducer

DN15~DN3600

Seamless Steel pipe

DN15~DN1200

ERW

DN15~DN1400

SSAW

DN200~DN3600

LSAW:

DN300~DN1400

Wall thickness:

1mm~160mm






1)Name: a105 carbon steel so rf flanges
2)Forged flange
3)Size:1/2-160"
4)Standard :ANSI,ASME,ASTM
5)Types:SO,WN,PL,BL,TH



a105 carbon steel so rf flanges

Size

1/2"-160"

Type

Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange, Swivel Flange, Spectacle Blind,Etc.

Standard

ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB

Class

ANSI 150LBS-2500LBS,

DIN PN6-PN160

BS PN0.25-PN25 PN2.0-PN42.0

JIS 5K-30K

Materials

Carbon Steel

ASTM:A105N/A105

Low Temperature Carbon Steel: ASTM SA350 LF2

High Strength Steel: ASTM SA694 F42/46/52/56/60/65

Stainless Steel

ASTM A182 F304/304L/316/316L

Alloy Steel

ASTM A182 F1/F5/F9/F11/F22/F91/Etc.

Duplex stainless steel

ASTM A182 F51/F53/F55/F60

Nicke alloys

Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800

Cu-Ni

90/10,70/30

Process

Free forging, plate cutting.

Printing

Carbon steel and alloy steel with yellow print, black print, oil or zinc.

Packing

Plywood case

Delivery

Usually within one month after receiving the formal order .

Inspection

Factory in-house or Third Party inspection available upon requests.

We can also manufacture special application flanges and forgings that customers require.

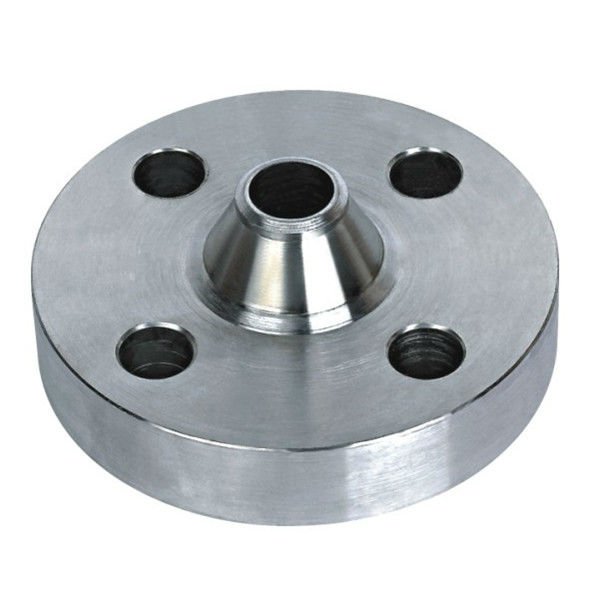

a105 wn rf flange

Forged Steel Flanges:

* ASME/ANSI B16.5 : WELDING NECK FLANGE, SLIP-ON FLANGE, BLIND FLANGE,HIGH HUB BLIND FLANGE, SOCKET WELD FLANGE.LAPJOINT FLANGE,

THREADED FLANGE. RING TYPE JOINT FLANGE.

Pressure Class : 150, 300, 400 , 600 , 900, 1500 , 2500

* ASME/ANSI B16.47(SERIES A & B) : WELDING NECK FLANGE, BLIND FLANGE.

Pressure Class :75, 150, 300, 400 , 600 , 900

* ASME/ANSI B16.36 : (ORIFICE FLANGES) WELDING NECK FLANGE, SLIPON FLANGE, THREADED FLANGE.

Pressure Class :300, 400 , 600 , 900, 1500 , 2500

* ASTM/ANSI B16.48:( Figure-8 blanks)

Pressure Class :150, 300, 400 , 600 , 900,1500, 2500

* MSS SP44:WELDING NECK FLANGE, BLIND FLANGE.

Pressure Class :300, 400 , 600 , 900

* API 6A:WELDING NECK FLANGE, THREAD FLANGE,BLIND FLANGE.

Pressure :2000Psi, 3000Psi, 5000Psi, 10000Psi, 15000Psi, 20000Psi, 25000Psi



a105 flange

wn rf flange





Type

ASTM A105 Carbon Steel thread Flange/ Socket Welded Fittings

Size

1/2"~60" DN15~DN2000

Wall thickness

150#,300#,600#,900#,1500#,3000#,6000#

Standards

ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc

Material

Carbon steel: ASTM/ASME A105
Alloy steel: ASTM/ASME A335 F5, F9, F11, F12, F91 Stainless steel: ASTM/ASME A403 F304-304L-304H-304LN-304N
ASTM/ASME A403 F316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 F321-321H ASTM/ASME A403 WP 347-347H
Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance: ASTM/ASME A860 F42-46-52-60-65-70

Surface treatment

Transparent oil, rust-proof black oil or hot galvanized

Packing

wooden case, pallet or as customers’ requirement

Applications

Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Min order

10 pieces

Delivery time

7 after receipt of advanced payment

Certification

API, ISO9001:2000

Delivery Term

FOB(30% down payment in advance, the balance before shipment)

CIF or C&F(30% in advance , the balance against with the copy of B/L)
